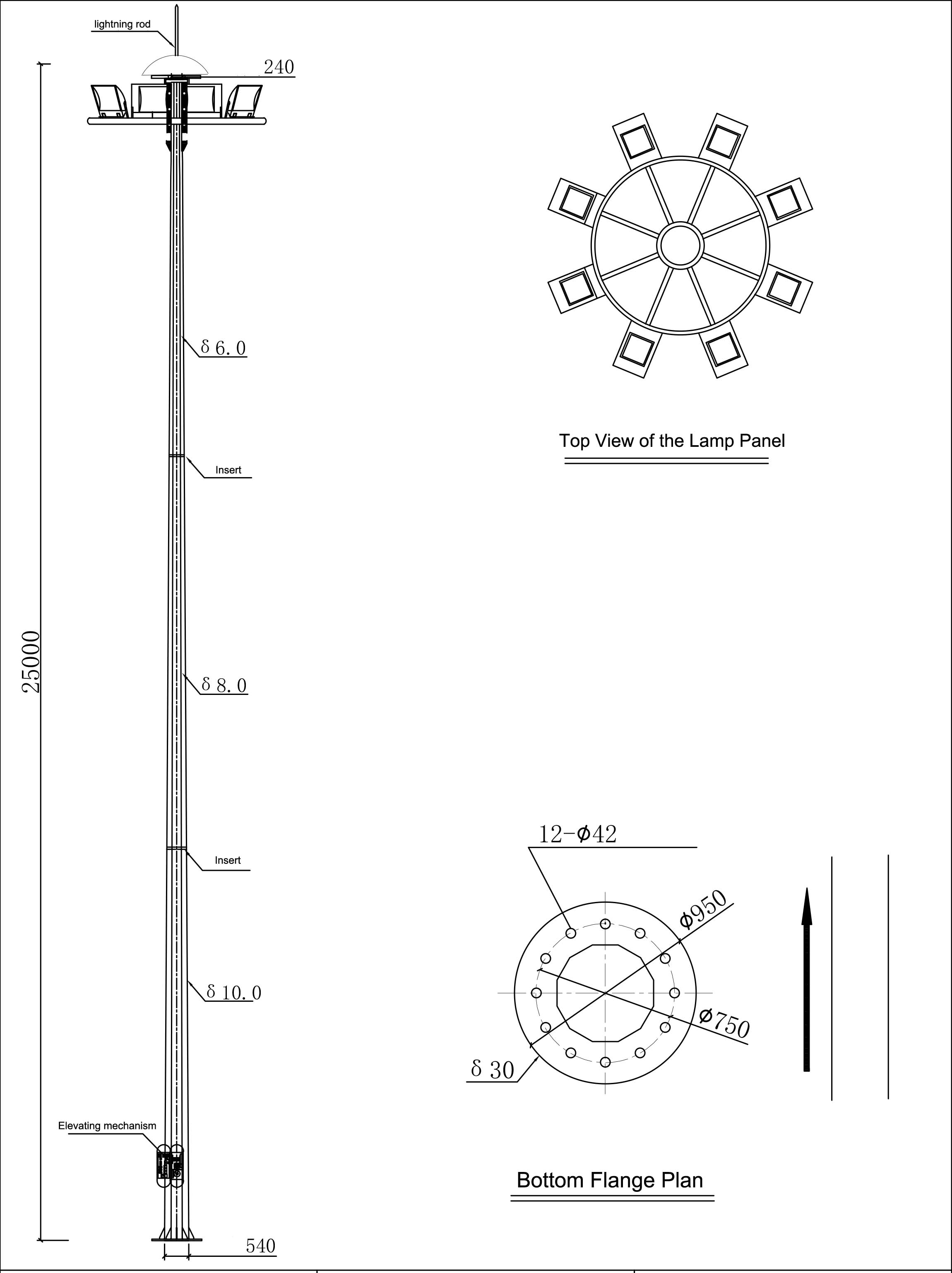

Customizable High-Mast Light – Fabricated to Client-supplied Drawings

‌1. Lamp Head Specifications:‌

• Power: 250W × 8 (Five-mode configuration)
• Power Supply: Philips® brand
• LED Chips: Philips® brand

‌2. Light Pole Specifications:‌

• Total Height: 25m dodecagonal pole (equipped with lifting system)
• Material: Premium Q235 steel
• Surface Treatment: Hot-dip galvanized + powder-coated
• Diameter Specifications:
  • Top/Bottom opening: 240mm/540mm
  • Wall Thickness: 6mm/8mm/10mm (graduated sections)
• Accessories:
  • Circular bracket plate
  • Base Flange: 950mm × 30mm
  • Flange Processing: Laser-cut mounting holes

Key technical highlights:
① Industry-standard galvanization & coating process
② Precision laser-cut flange for structural integrity
③ Multi-mode Philips® driver system with 8-chip array

This translation maintains:
✓ Metric unit consistency
✓ Brand component identification (Philips®)
✓ Technical process terminology (hot-dip, laser-cut)
✓ Structural gradation specifications (wall thickness/diameter)
